Description

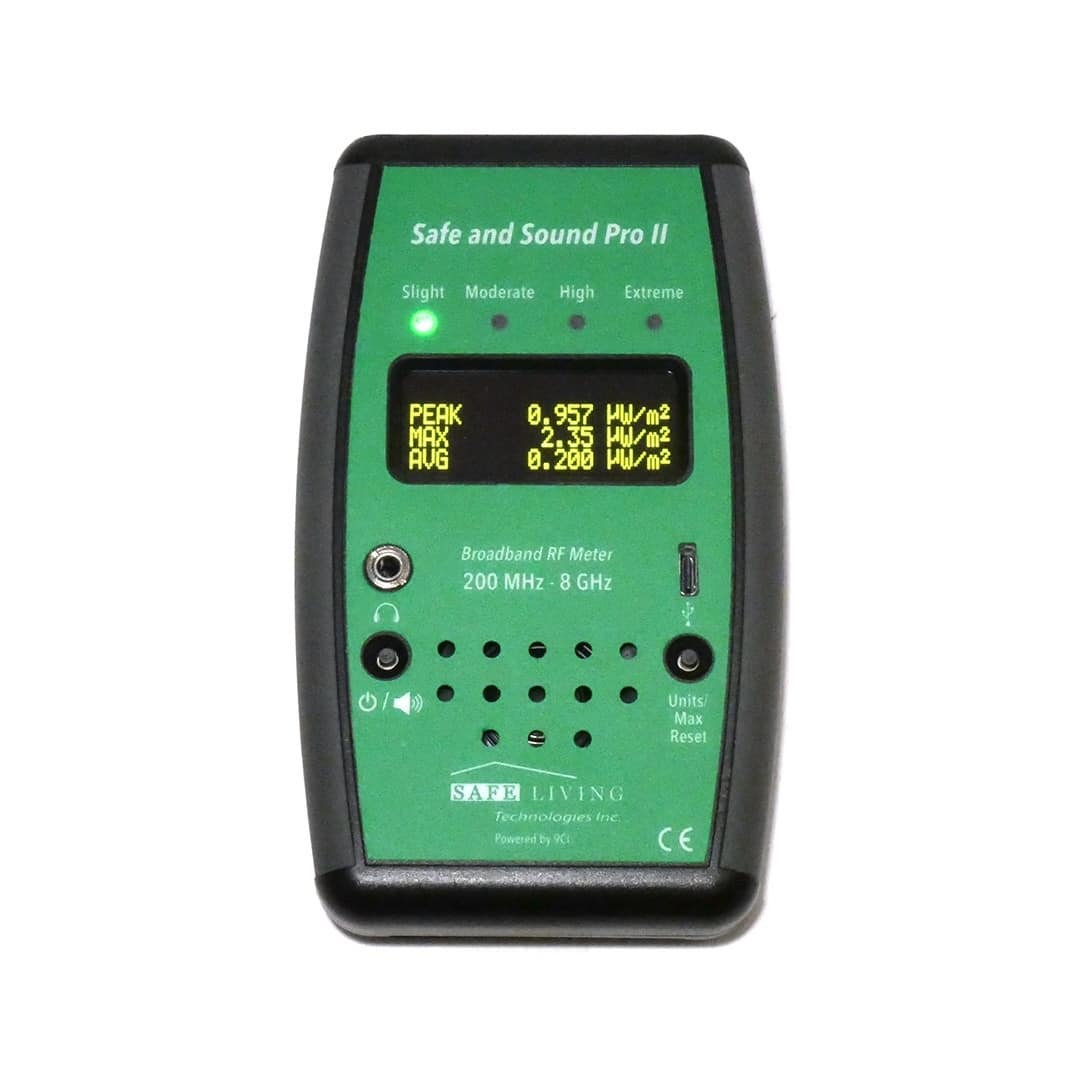

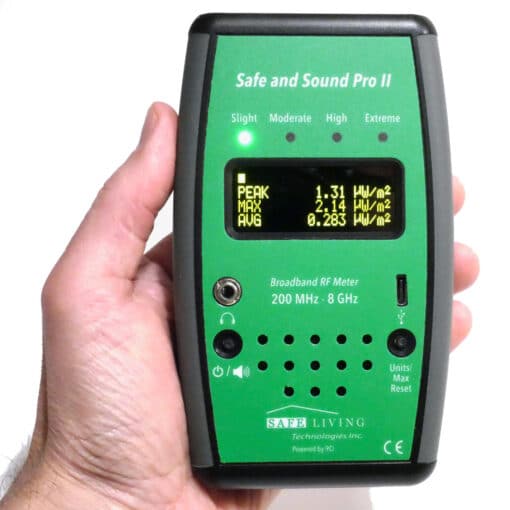

Safe and Sound Pro II RF Meter
The Safe and Sound Pro II RF (Radio Frequency) Meter is a compact, simple-to-use meter for measuring Radio Frequency / Microwave Radiation (200 MHz to 8 GHz). The meter has been tested and certified by The Nemko Canada Inc Testing Lab in Cambridge Ontario, Canada.
Features:
- Effective measurement range: 200 MHz to 8 GHz
- True response detection range: 400 MHz to 7.2 GHz (+/- 6dB)
- Accuracy +/- 6dB performance tested in a 3rd party certified RF testing lab. (Each meter is individually calibrated and QC inspected.)
- Sound signature analysis to assist with source identification
- 3 selectable volume levels + Sound On/Off option
- Designed with low EMF emissions
- Premium 4 line OLED Display for a real time display that is easy to read in any type of light
- Uses state of the art measurement technology and is sensitive to 0.001 µW/m², for the Electrically Hypersensitive person
- Now features two selectable units of measure: Volts per meter (V/m) or Microwatts per square meter (µW/m²)
- Meters are temperature compensated to measure accurately under any environmental conditions
- Power Response linearization completed in a 3rd party certified RF testing lab
- Will measure low band and mid band 5G cellular signals between 200 MHz and 8 GHz
- Measures power densities up to 3,180,000 µW/m² and down to 0.005 µW/m² (Linear response between 0.1 µW/m² and 1,000,000 µW/m²)
- Max Hold with option to clear at anytime
- Bar graph of RF intensity
- USB C Power Jack for continuous monitoring
- High quality adjustable Volume Control, as well as 3.5mm headphone jack
- Battery remaining display
- Battery operated (2 x AA Alkaline only) – 12-15 hour battery life
- Small, durable and compact handheld design – 7″ X 4.5″ X 1.5″ (17cm x 11cm x 4cm)
- Engineered in Canada – Manufactured in Canada and the USA
- 2 Year Warranty
Applications:
- Quickly determine RF present in your environment within 200 MHz and 8 GHz
- Some of the more common sources the meter can detect:
- Cell towers (2G, 3G, 4G, 4G LTE, Low and Mid Band 5G)
- Cell phone emissions
- Cordless home phones
- Wireless routers (both 2.4 and 5 GHz)
- Bluetooth devices
- Smart meter emissions
- Baby monitors
- Airport radar
- Microwave oven leakage detection
Supplied With:
- Safe and Sound Pro II RF Meter
- Zippered Carrying Case
- User’s Guide
- 2 – AA Alkaline Batteries
- 2 Year Warranty
Technical Data:
| Frequency Range of Meter: | 400 MHz – 7.2 GHz (will detect signals from 200 MHz to 8 GHz) |
| Accuracy | +/- 6dB (3rd Party Certified – Report Coming Soon) |
| Power Range | <0.001 μW/m2 to >2,500,000 μW/m2 |
| Sampling Rate | <5 μs |
| LED Ranges @ 2.4 GHz |
Green (Flashing) <1 μW/m2
Green 1 – 10 μW/m2
Yellow 10 – 100 μW/m2
Orange 100 – 1,000 μW/m2
Red 1,000 – 10,000 μW/m2
Red (Slow Flashing) 10,000 μW/m2 – 100,000 μW/m2
Red (Fast Flashing) >100,000 μW/m2
|
| Zipper Case Dimensions | 7″ x 4.5″ x 1.5″ (17cm x 11cm x 4cm) |
| Meter Dimensions: | 6″ x 3.5″ x 1″ (15cm x 9cm x 2.5cm) |
| Weight (With Zipper Case): | 0.6 lbs (0.286kg) |
| Material of Meter Case: | Plastic |
| Battery Life: | 2 x AA Alkaline Batteries – 12 to 15 hour battery life |
Manuals & Instructional Video
Manual for the Safe and Sound Pro II RF Meter
DOWNLOAD
Instructional video for Safe and Sound Pro II Meter
VIEW
